Product Name : L7
Products
proimages/products/Manual_wheelchair/L7/L7-gif.gif

Overview

  • Seat tilt angle adjustment: 95°~140°
  •  Back recline angle adjustment: 95°~130°
  •  Headrest height adjustable
  •  Air mesh upholstery
  •  Armrest flip back & height adjustable
  •  Detachable swing away footrest
  •  8" x 1  1/4" PU front tire
  •  16" x 1  3/8" PU rear tire
  •  Max. capacity: 120 kg

feature

  • proimages/products/Manual_wheelchair/L7/L7_工作區域_5.jpg

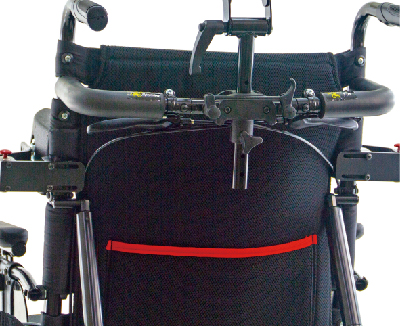

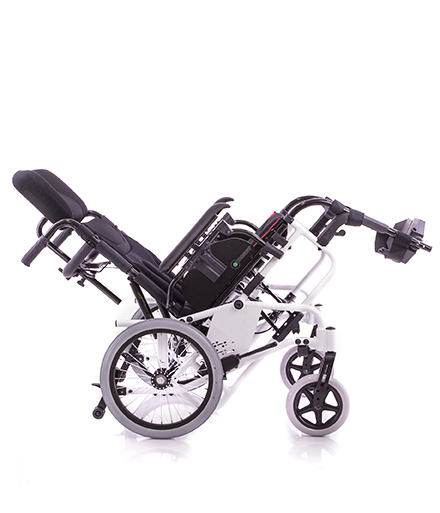

    Easily tilt and recline
  • proimages/products/Manual_wheelchair/L7/L7_工作區域_6.jpg
    Foldable
  • proimages/products/Manual_wheelchair/L7/L7_工作區域_7.jpg

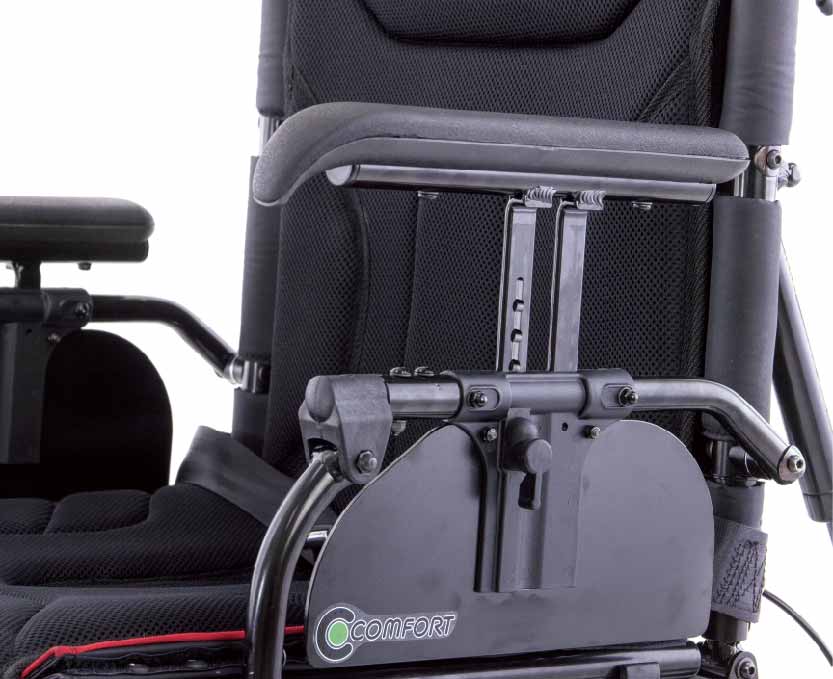

    Flip & height adjustable armrest
  • proimages/products/Manual_wheelchair/L7/L7_工作區域_8.jpg

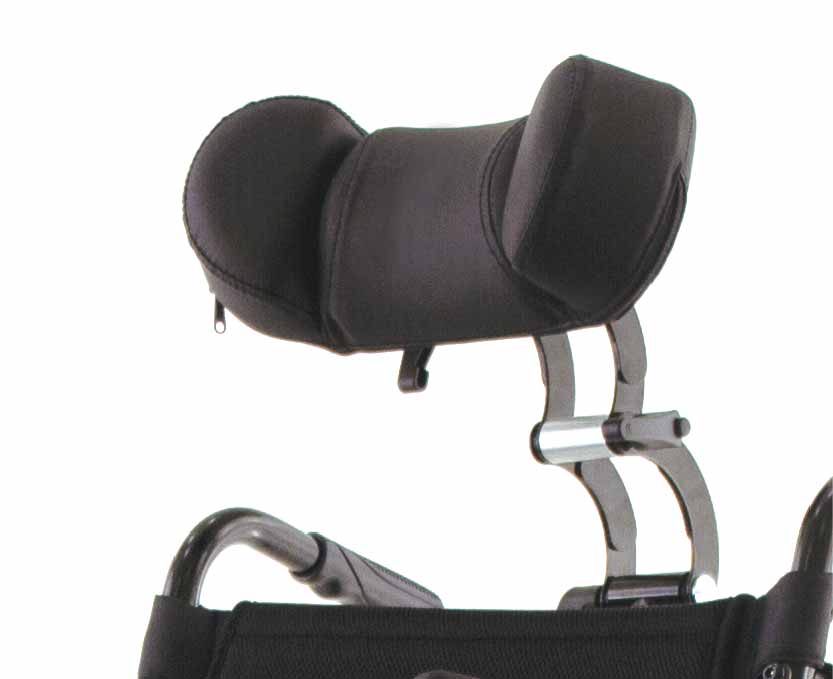

    Headrest angle & height adjustable, memorable foam

Option

  • proimages/products/Manual_wheelchair/L7/L7_工作區域_9.jpg

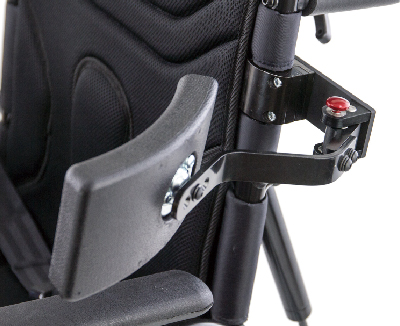

    Side support
  • proimages/products/Manual_wheelchair/L7/L7_工作區域_10.jpg

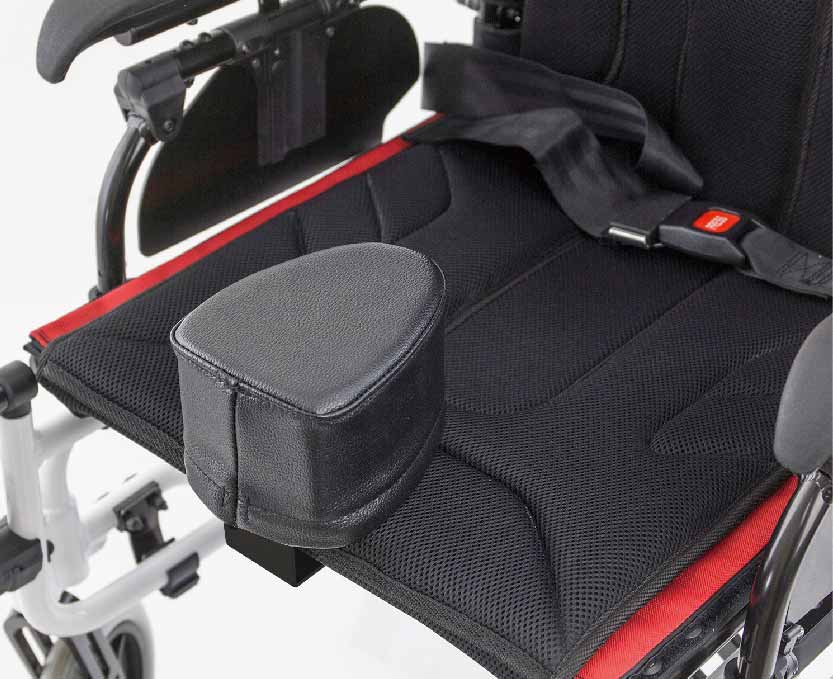

    Pommel
  • proimages/products/Manual_wheelchair/L7/L7_工作區域_11.jpg

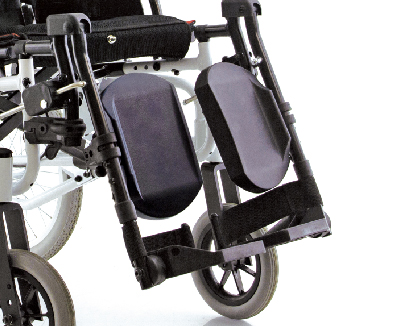

    Elevating legrest

Measurement

proimages/icon/swipe.png
SIZE J A L
400 mm 460 mm 510 mm
635 mm 685 mm 735 mm
400 mm 400 mm 400 mm
1010 mm 1010 mm 1010 mm
460-560 mm 460-560 mm 460-560 mm
450/ 475/ 500 mm 450/ 475/ 500 mm 450/ 475/ 500 mm
195-255 mm 195-255 mm 195-255 mm
1075/ 1100/ 1125 mm 1075/ 1100/ 1125 mm 1075/ 1100/ 1125 mm
400/ 425/ 450 mm 400/ 425/ 450 mm 400/ 425/ 450 mm
Front castor
(inch)
8 8 8
Rear wheel
(inch)
16 16 16
N.W. (kg) 19.5 20.0 20.5
