Product Name : CONQUEROR (LY-EB206-RS1)
Product Description

CONQUEROR is the optimal power wheelchair for users who need to sit in wheelchair for long periods of time.

Tension-adjustable straps allow the backrest to be shaped to each individual and wide strap designed for adjustability, convenience, and support.

In addition, 14" pneumatic rear wheel with suspension system which improve performance on uneven terrain and vibration reduction. User will feel safe and comfortable driving the wheelchair over a variety of terrain and surfaces.

Products

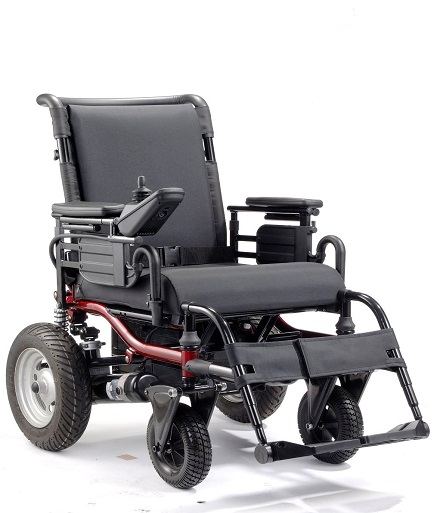

proimages/products/Power_wheelchair/LY-EB206_RS1/LY-EB206-RS1.jpg

Overview

  • Rigid steel framework
  • Flip-back & height adjustable armrest
  • Detachable & swing away footrest
  • Angle adjustable footplate
  • Front castor: 9"   pneumatic tire with suspension
  • Rear wheel: 14" (3.00/3.00-8) pneumatic tire with suspension
  • PG controller
  • Motor: 450 W x 24V
  • Battery: 50 Ah x 12V
  • Max. speed: 9.6 km/h
  • Max. capacity: 120 kg

Feature

  • proimages/products/Power_wheelchair/LY-EB206_RS1/FEATURE/EB206-RS1-ajdustable_straps.jpg

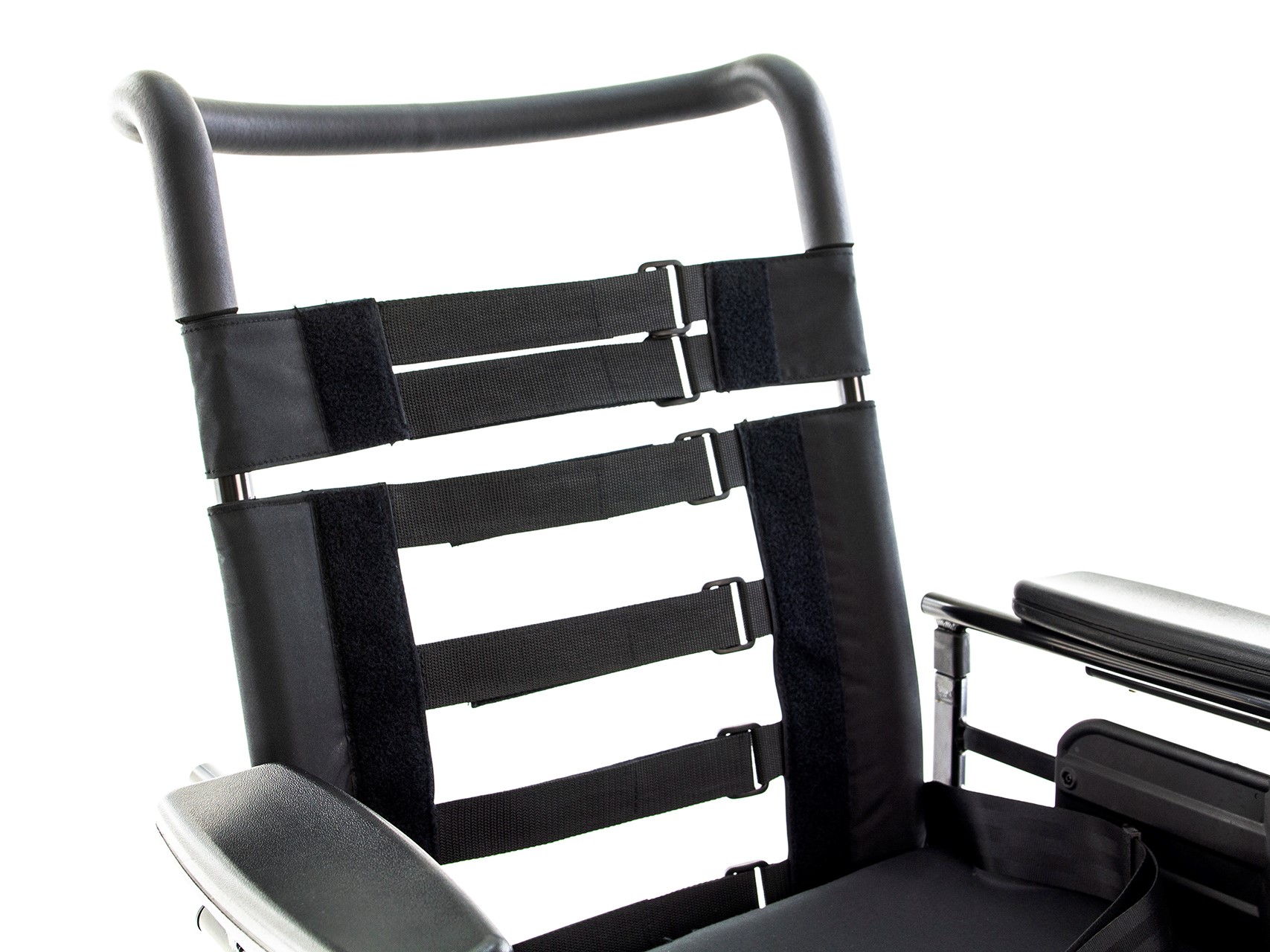

    Tension-adjustable straps
  • proimages/products/Power_wheelchair/LY-EB206_RS1/FEATURE/EB206-RS1-suspension.jpg

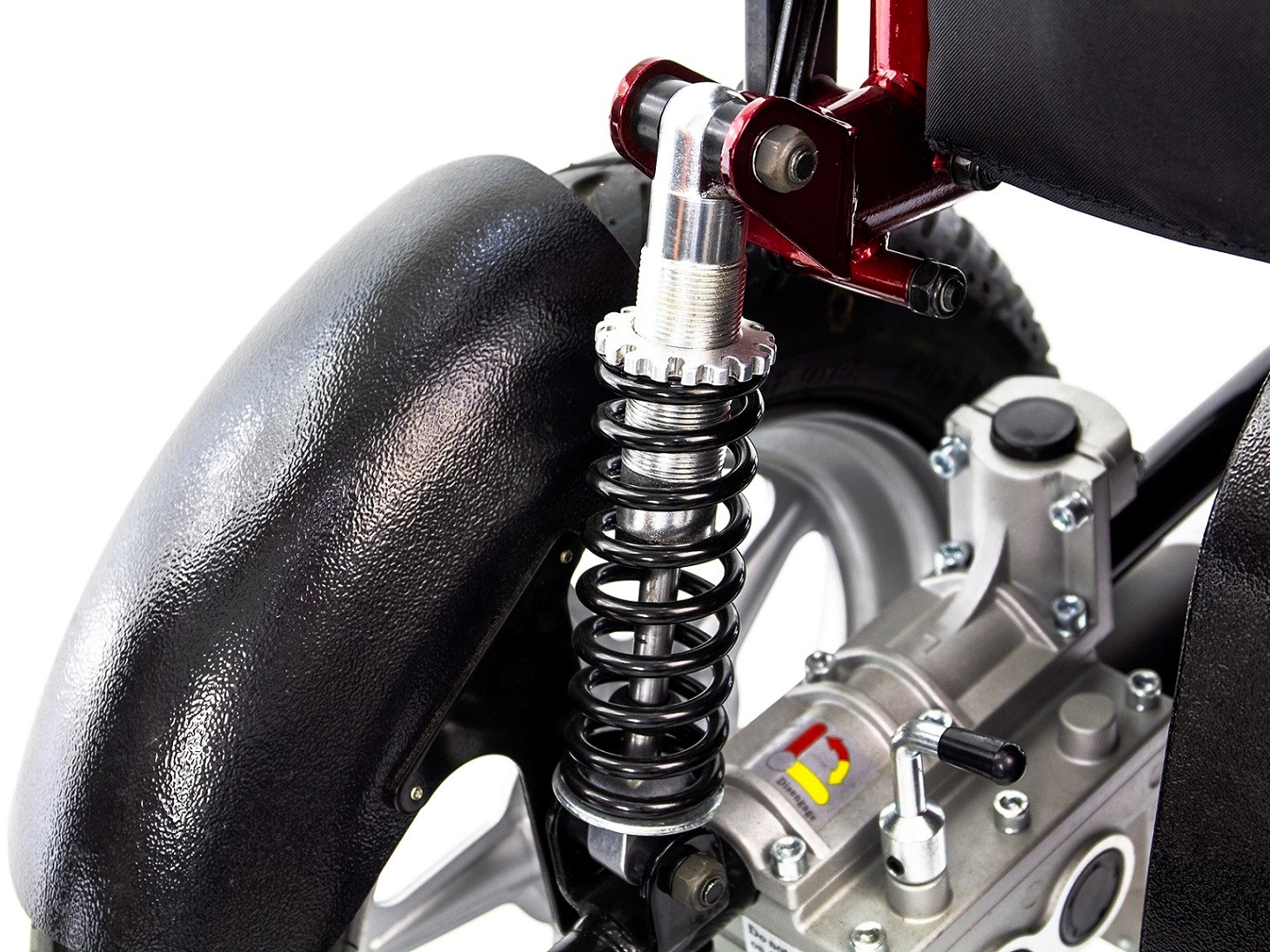

    Suspension system
  • proimages/products/Power_wheelchair/LY-EB206_RS1/FEATURE/EB206-RS1-flip_back_armrest.jpg

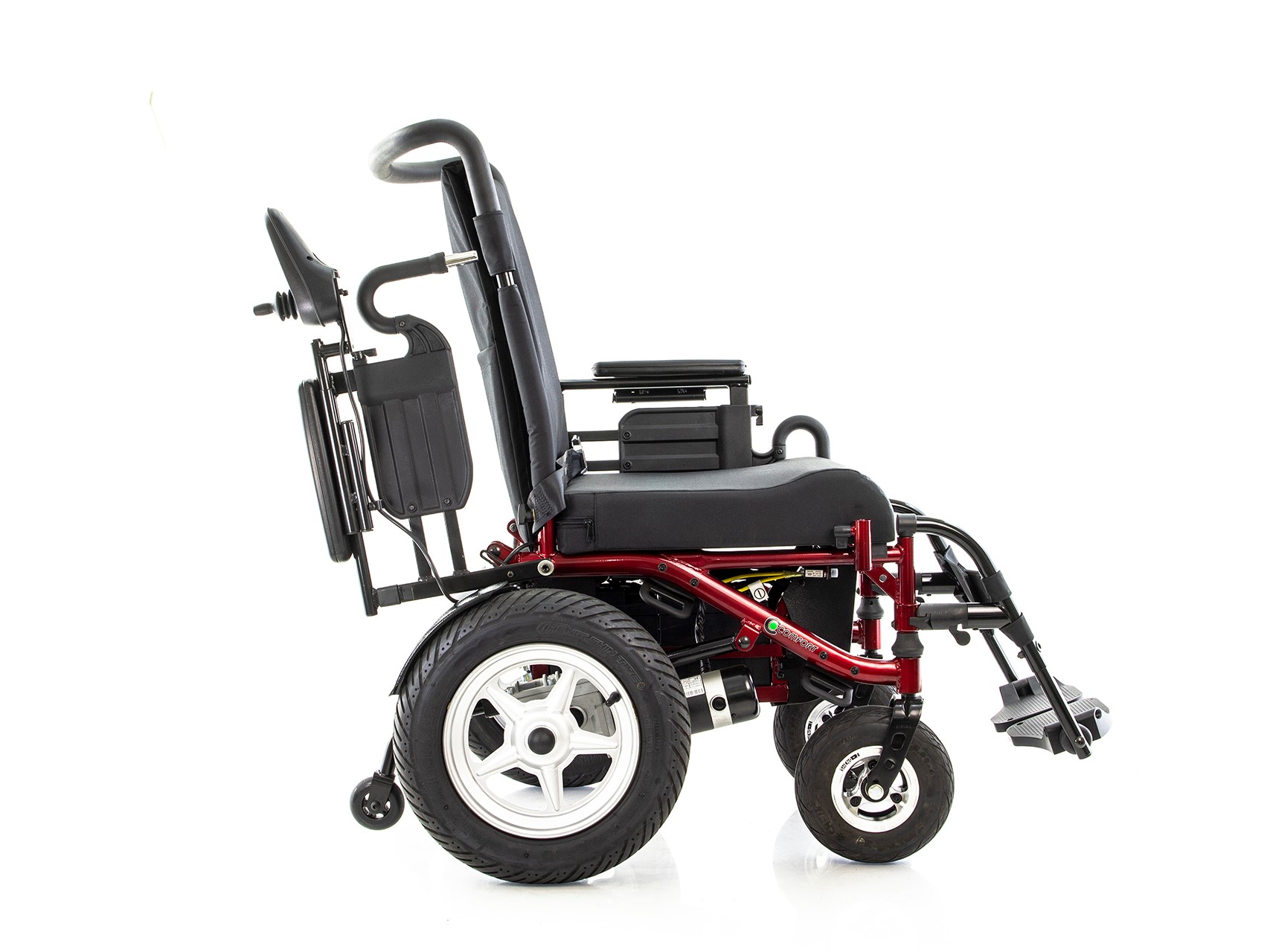

    Flip-back armrest
  • proimages/products/Power_wheelchair/LY-EB206_RS1/FEATURE/EB206-RS1-Height_adjustable_armrest.png

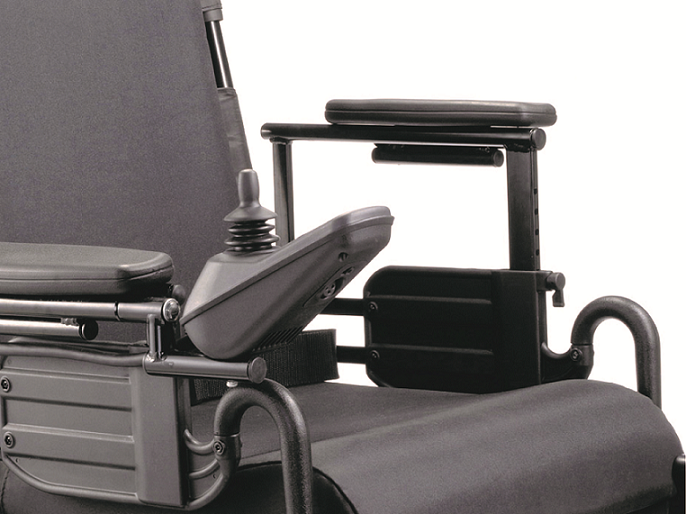

    Height adjustable armrest
  • proimages/products/Power_wheelchair/LY-EB206_RS1/FEATURE/EB206-RS1-Tie_down_anchorage.jpg

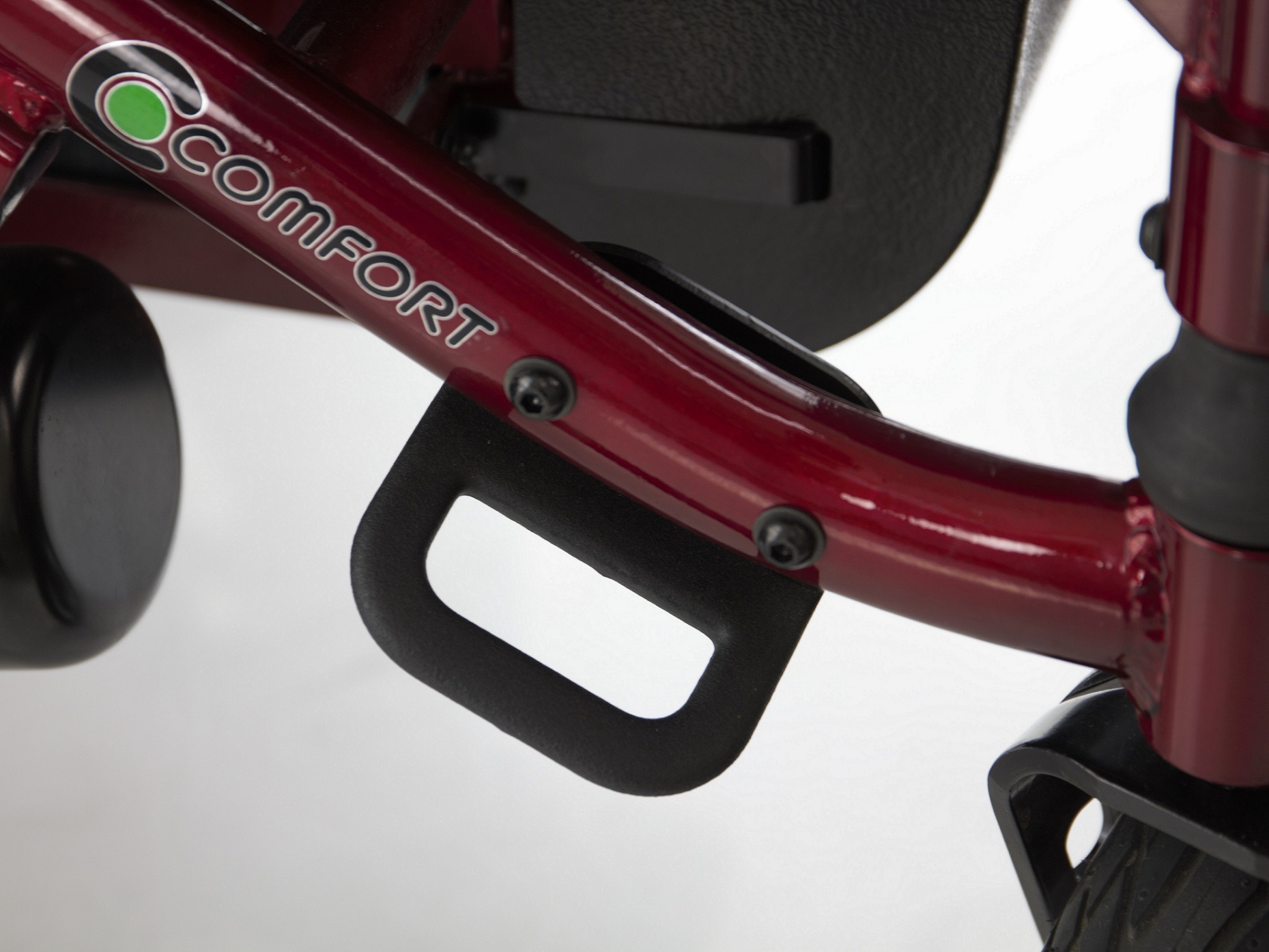

    Tie down anchorage
  • proimages/products/Power_wheelchair/LY-EB206_RS2/EB206-RS2-footrest.jpg

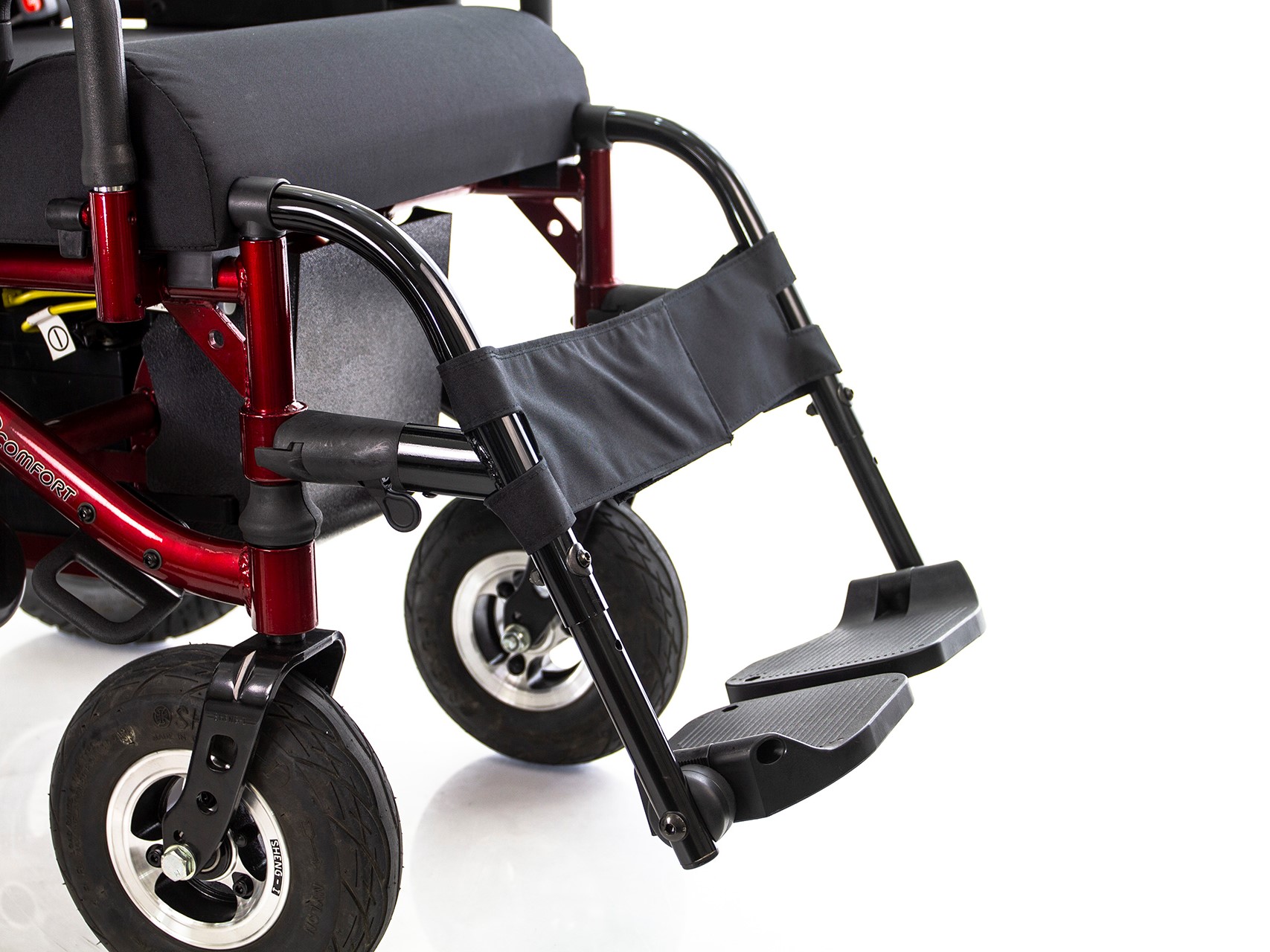

    Detachable and swing away footrest
  • proimages/products/Power_wheelchair/LY-EB206_RS2/EB206-RS2-anti_tipper.jpg

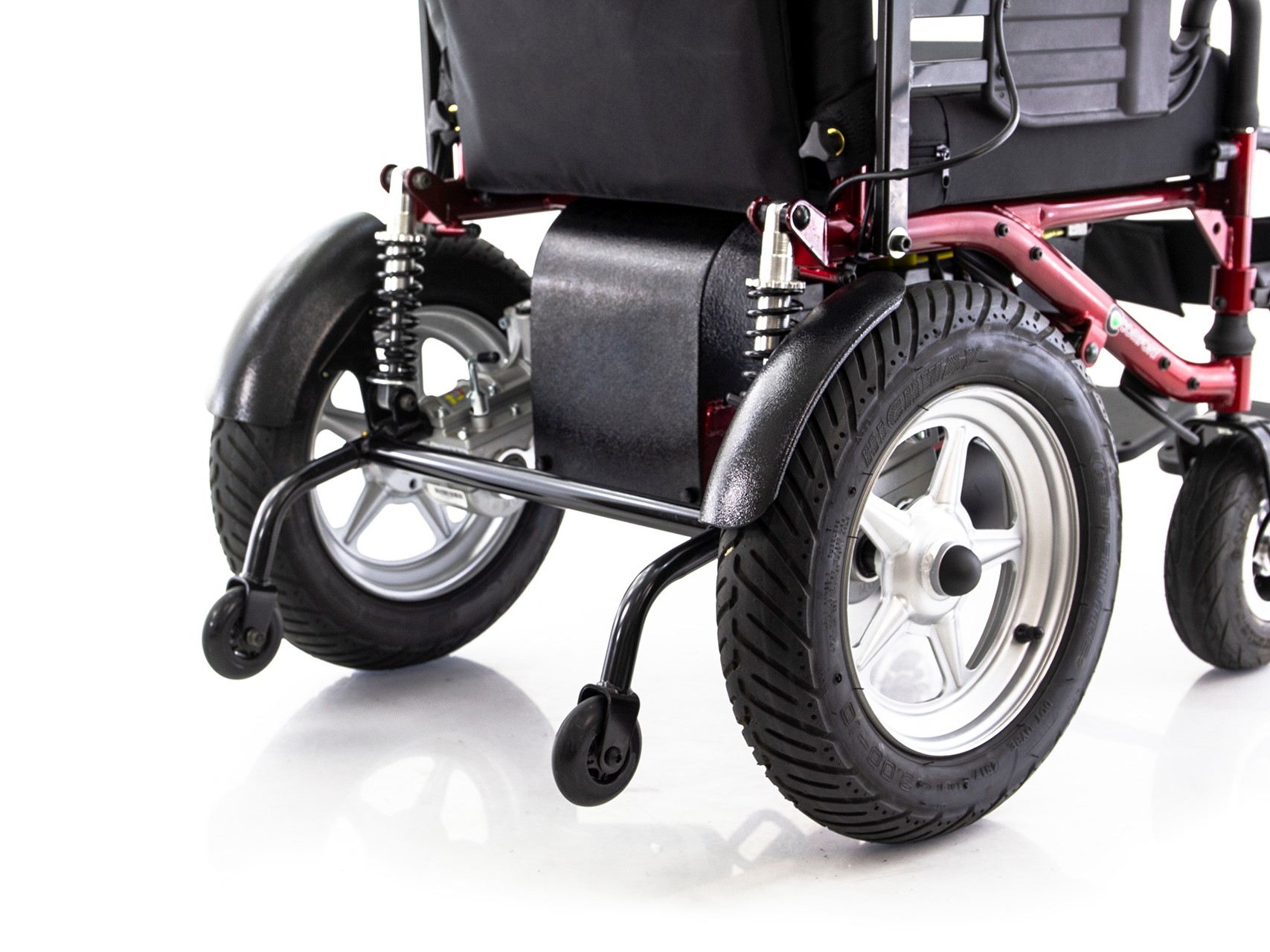

    Anti-tipper with roller
  • proimages/products/Power_wheelchair/LY-EB206_RS1/FEATURE/EB206-RS1-safety_belt.jpg

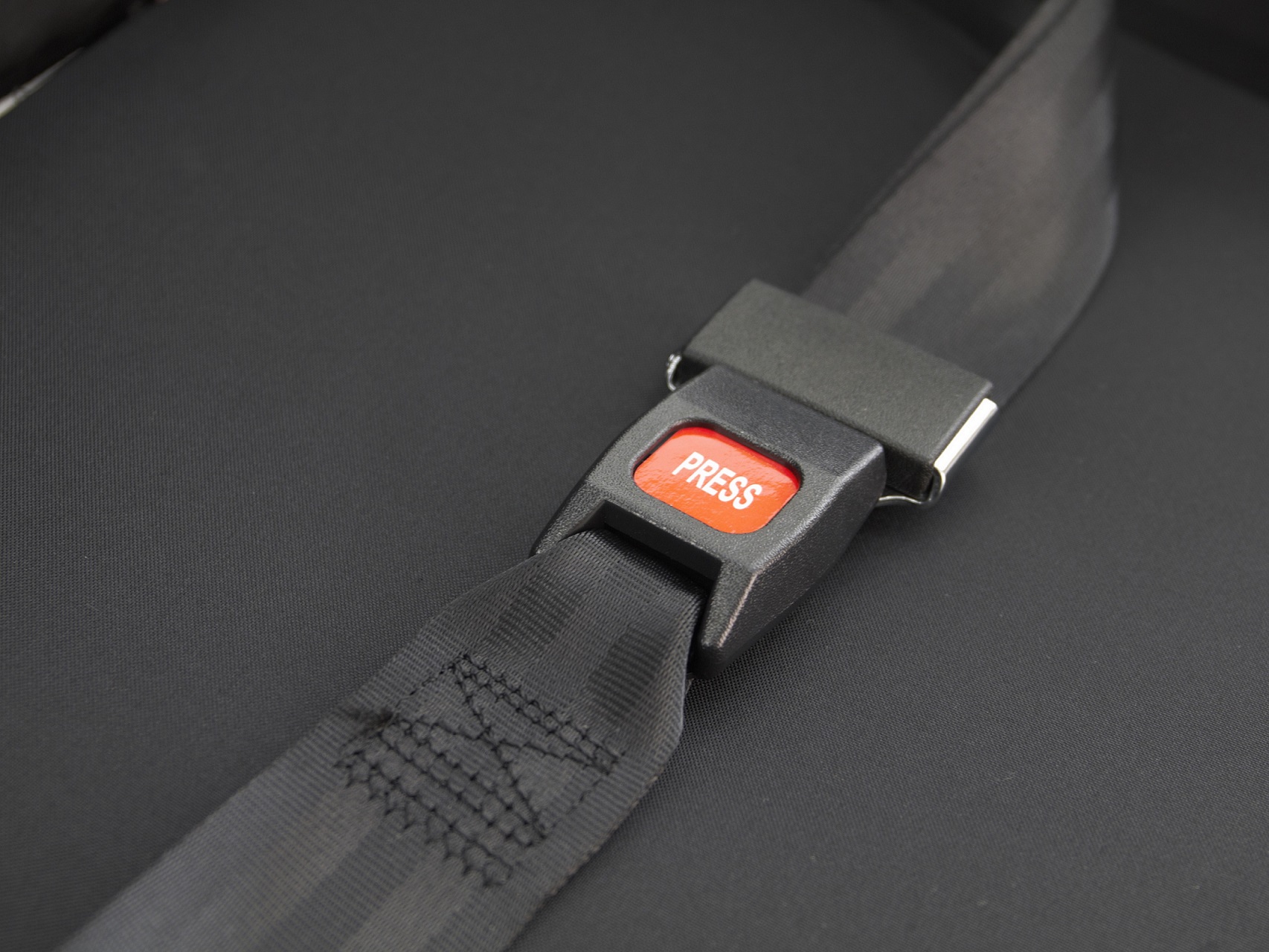

    Safety belt with buckle

Option

  • proimages/products/opt-01.jpg

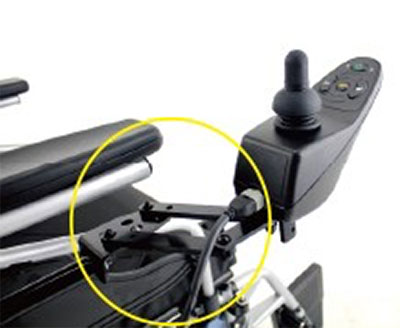

    Swing away support for controller

Measurement

proimages/icon/swipe.png
SIZE A J
1125 mm 1125 mm
680 mm 640 mm
1090 mm 1090 mm
460 mm 460 mm
475 mm 475 mm
485 mm 430 mm
170-270 mm 170-270 mm
430 mm 430 mm
Front castor
(inch)
9 9
Rear Wheel
(inch)
14 14
N.W. (kg)
incl.battery
82 80
