X1-SP Active wheelchair
Products
Overview

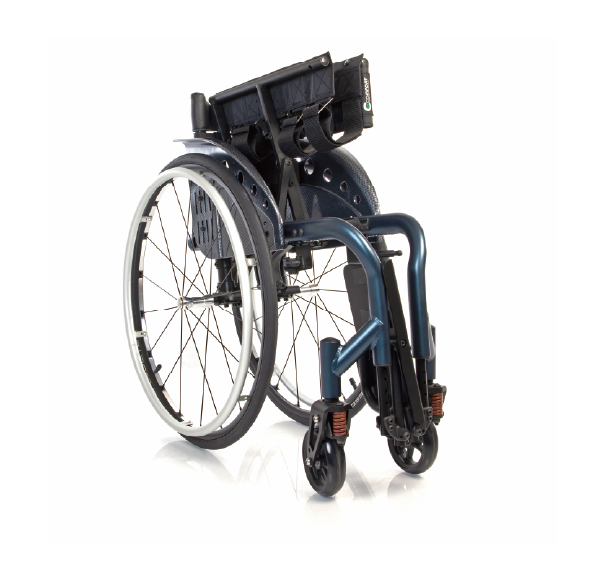

- Foldable frame
- Upholstery air mesh
- With seat cushion for option
- Adjustable angle of backrest
- Adjustable height of footplate
- 5” PU tire with suspension
- 24” x 1" pneumatic rear tire
- Wheel camber: 2 °
- Available seat width: 16”, 17”, 18”
- Max. capacity: 120 kg
feature
-
Horizontal lever wheel lock -
Folding & height adjustable footrest -
Front castor with suspension -
Quick release axle
Option
-
Folding hand grip -
Anti-tipper with roller -
Plastic side guard, water transfer printing -
Aluminum side guard, frosted finish -
Fork w/suspension -
Plastic rim, PU tire -
24A - PU tire, Aluminum rim, 36-spoke -
24D - Aluminum rim, 12-spoke -
24G - Aluminum rim, 18-spoke -
24H - Carbon fiber rim, 10-spoke -
24J - Aluminum rim, 24-spoke -
24K - Aluminum rim, 12-spoke
Measurement
| SIZE | J | A | L |
 |
16" | 18" | 20" |
 |
480/ 500 mm | 480/ 500 mm | 480/ 500 mm |
 |
400/ 440 mm | 400/ 440 mm | 400/ 440 mm |
| Front castor (inch) |
5 | 5 | 5 |
| Rear wheel (inch) |
24 | 24 | 24 |
