Product Name : K7

Product Description

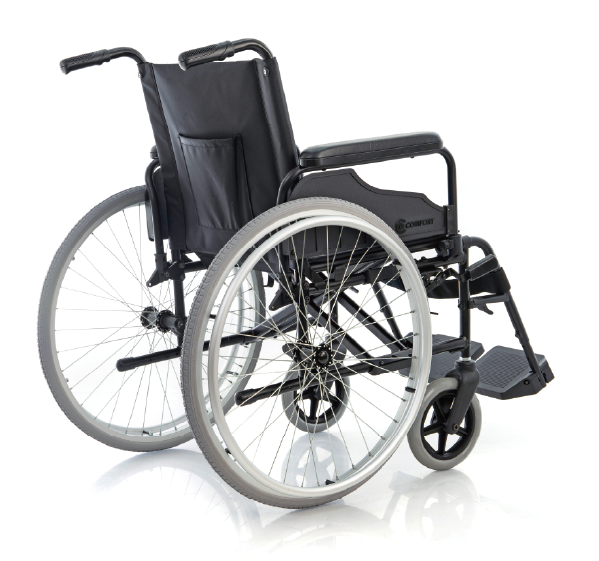

Comfort wheelchair is the pure value of wheelchair made in Taiwan. The excellence of K7 lightweight wheelchair rests in every detail from its classic design and each inch material it uses. K7 family includes K7, K7 Bariatric, and K7-812 covering seat widths 16”~24”, and styles for occupant/attendant driven. It offers various optional accessories for different needs. Over 40 years, we produce wheelchair professionally. We care about the user, we promise to offer the best, and we know how to make it good.

Q'ty :

Inquiry

Products

Overview

Flip up full length armrest
Detachable swing away footrest
8” x 1-1/4" PU front tire
24” x 1-3/8" PU rear tire
Available seat width: 16”, 18”, 20”, 22", 24"
Max. capacity: 140 kg (size 16"~20"), 170 kg (size: 22", 24")

feature

Detachable footrest

The footrest could be removed to approach the operation platform closely.
Flip up armrest

Flip up armrest design support the user get close to a table or desk.
Footplate

The foldable design allow the user get in/ out of the wheelchair conveniently.

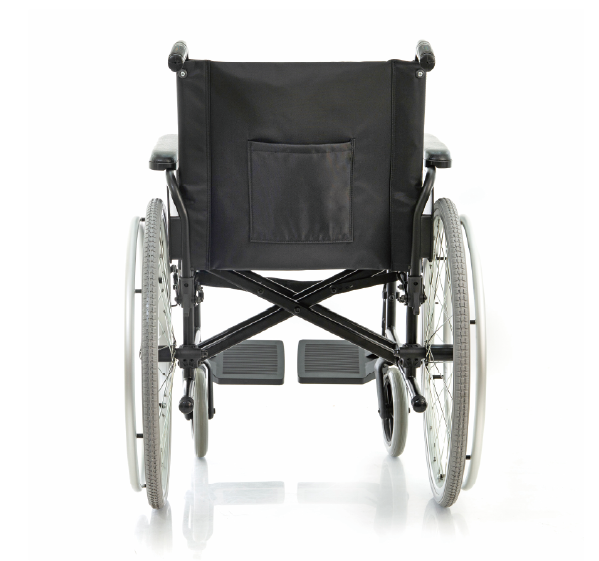

Back bag

A pocket behind the backrest for user to hold or carry things.
Calf strap

Fix the leg in position against sliding backward during movement.

Option

Desk length armrest

Desk length armrest support the user get close to a table or desk.
Elevating footrest

The elevating function offer the user place their leg in different position and minimize the fatigue caused.
Quick release axle

The rear wheel is designed with quick release mechanism which could be removed with one button in one second.
Safety belt

K7 manual wheelchair come with lap belt to fix user’s body against leaning forward during the movement.
Anti tipper with roller

The anti-tipper with roller provide safety experience keeps the chair from falling over backward.
Heel loop

There is another option for users to hold their feet on the plate safely.

Measurement

SIZE	J	A	L	H	M
	410 mm	460 mm	510 mm	560 mm	610 mm
	599 mm	650 mm	701 mm	740 mm	790 mm
	310 mm	310 mm	310 mm	360 mm	385 mm
	890 mm	890 mm	890 mm	895 mm	895 mm
	410 mm	410 mm	410 mm	410 mm	410 mm
	500/ 525 mm	500/ 525 mm	460/ 485/ 510 mm	460/ 485/ 510 mm	460/ 485/ 510 mm
	220 mm	220 mm	220 mm	225 mm	225 mm
	835 mm	835 mm	835 mm	860 mm	860 mm
	1065 mm	1065 mm	1065 mm	1120 mm	1120 mm
	400 mm	400 mm	400 mm	430/ 455/ 480 mm	430/ 455/ 480 mm
Front castor (inch)	8	8	8	8	8
Rear wheel (inch)	24	24	24	24	24
N.W. (kg)	12.3	13.0	13.6	15.3	16.0
