Product Name : K7 Plus_Bariatric
Product Description
Comfort wheelchair is the pure value of wheelchair made in Taiwan. The excellence of K7 lightweight wheelchair rests in every detail from its classic design and each inch material it uses. K7 family includes K7, K7 Bariatric, and K7-812 covering seat widths 16”~24”, and styles for occupant/attendant driven. It offers various optional accessories for different needs. Over 40 years, we produce wheelchair professionally. We care about the user, we promise to offer the best, and we know how to make it good.
Products
proimages/products/Manual_wheelchair/K7B-PLUS/工作區域_2.png

Overview

  • Seat depth adjustable
  • Seat height adjustable
  • Center of gravity adjustable
  • Detachable flip up desk length armrest
  • Detachable swing away footrest
  • 8” x 1-1/4" PU front tire
  • 24” x 1-3/8" PU rear tire
  • Available seat width: 16”, 18”, 20”, 22", 24"
  • Max. capacity: 120 kg (size 16"~20"), 170 & 190 kg (size: 22", 24")

feature

  • proimages/products/Manual_wheelchair/K7B/K7B-fea_footrest.jpg

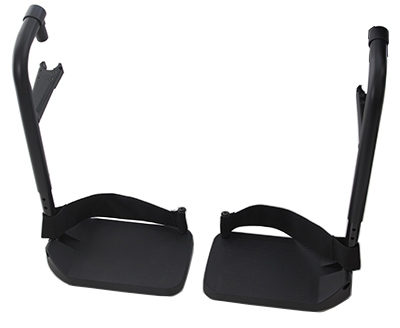

    Detachable swing away footrest
  • proimages/products/Manual_wheelchair/K7B/K7B-fea_belt.jpg

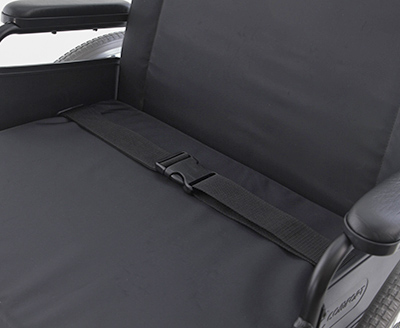

    Lap belt
  • proimages/products/Manual_wheelchair/K7/工作區域_7_.png
    Anti-tipper with roller
  • proimages/products/Manual_wheelchair/K7B-PLUS/工作區域_7.png

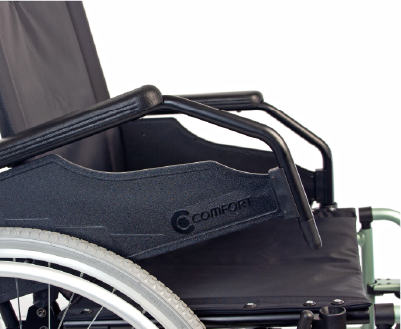

    Flip up armrest
  • proimages/products/Manual_wheelchair/K7B/K7B-fea_back_bag.jpg

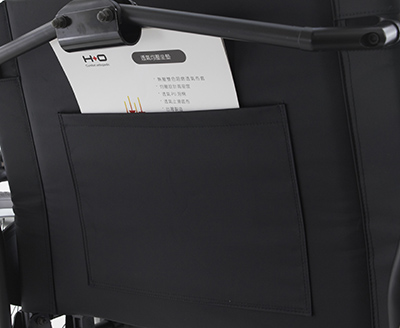

    Back bag

Option

  • proimages/products/Manual_wheelchair/K7/K7_elevating.jpg
    Elevating footrest
  • proimages/products/Manual_wheelchair/K7/工作區域_9.png
    Quick release axle
  • proimages/products/Manual_wheelchair/K7B/工作區域_6.png

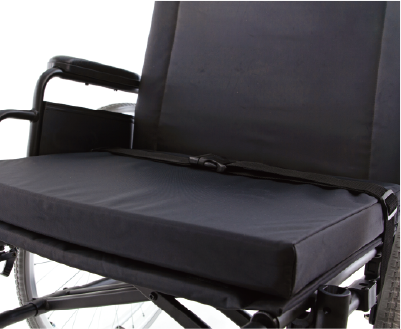

    5 cm seat cushion

Measurement

proimages/icon/swipe.png
SIZE J A L H M
410 mm 460 mm 510 mm 560 mm 610 mm
599 mm 650 mm 701 mm 740 mm 790 mm
310 mm 310 mm 310 mm 360 mm 385 mm
890 mm 890 mm 890 mm 895 mm 895 mm
410 mm 410 mm 410 mm 410 mm 410 mm
500/ 525 mm 500/ 525 mm 500/ 525 mm 460/ 485/ 510 mm 460/ 485/ 510 mm
220 mm 220 mm 220 mm 225 mm 225 mm
835 mm 835 mm 835 mm 860 mm 860 mm
1065 mm 1065 mm 1065 mm 1120 mm 1120 mm
400/ 430/ 460 mm 400/ 430/ 460mm 400/ 430/ 460 mm 430/ 455/ 480 mm 430/ 455/ 480 mm
Front castor
(inch)
8 8 8 8 8
Rear wheel
(inch)
24 24 24 24 24
N.W. (kg) 12.3 13.0 13.6 15.3 16.0
