K9
Products
Overview

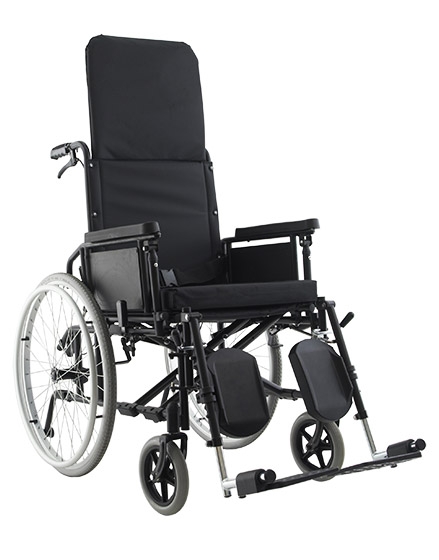

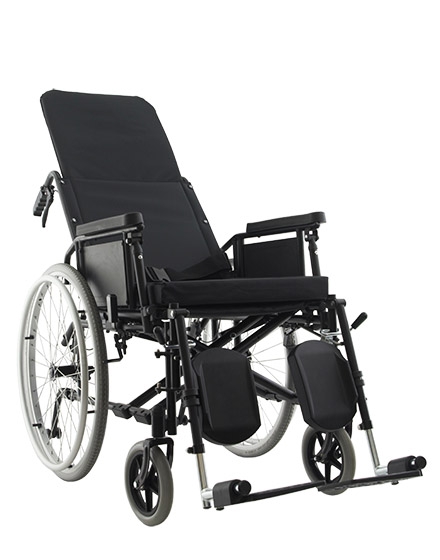

- Steel reclining wheelchair

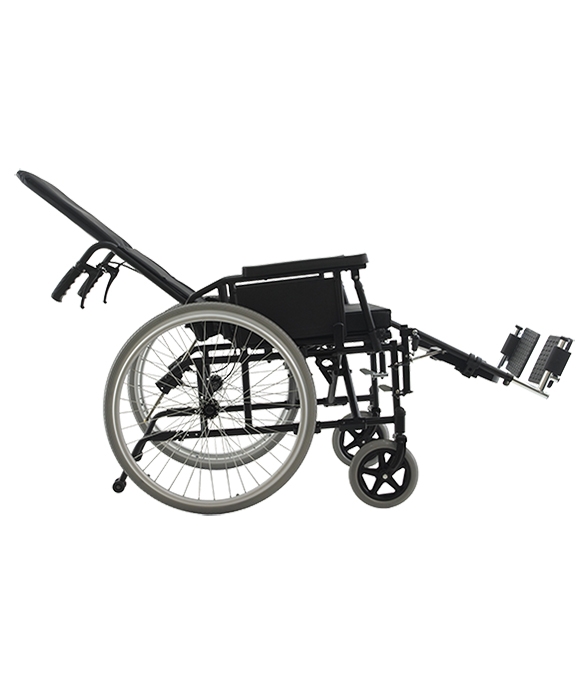

- Reclining range: 140° ~ 175°
- Backrest with extension
- Detachable & flip back swing armrest
- Detachable swing way elevating footrest
- Double cross bar
- Front castors: 8" PU tire
- Rear wheels: 24" x 1-3/8" PU tire
- Max capacity: 140 kg (size 16"~20") / 170 kg (size 22"~24")
feature
-
Backrest with extension -
Flip back armrest -

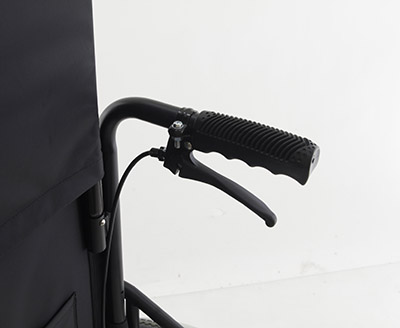

Control lever -
Foldable footplate -
Elevating footrest -
Detachable footrest -
Calf pad -
Anti-tipper with tipping aid
Option
-
QR release axle -
Detachable cushion
Measurement
| SIZE | J | A | L | H | M |
 |
400 mm | 460 mm | 510 mm | 560 mm | 610 mm |
 |
600 mm | 660 mm | 710 mm | 780 mm | 830 mm |
 |
345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
 |
1300 mm | 1300 mm | 1300 mm | 1300 mm | 1300 mm |
 |
450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
 |
510 mm | 510 mm | 510 mm | 510 mm | 510 mm |
 |
220 mm | 220 mm | 220 mm | 220 mm | 220 mm |
 |
1220 mm | 1220 mm | 1220 mm | 1270 mm | 1270 mm |
 |
400 mm | 400 mm | 400 mm | 460 mm | 460 mm |
| Front castor (inch) |
8" x 1-1/4" | 8" x 1-1/4" | 8" x 1-1/4" | 8" x 2" | 8" x 2" |
| Rear wheel (inch) |
24" x 1-3/8" | 24" x 1-3/8" | 24" x 1-3/8" | 24" x 1-3/8" | 24" x 1-3/8" |
| N.W. (kg) | 23.4 | 24.4 | 25.3 | 27.8 | 28.2 |
