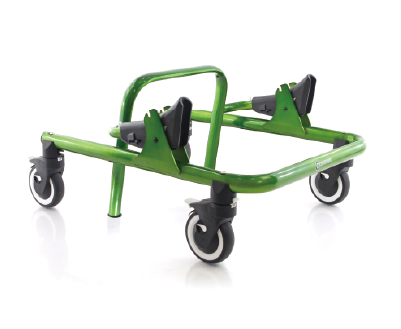

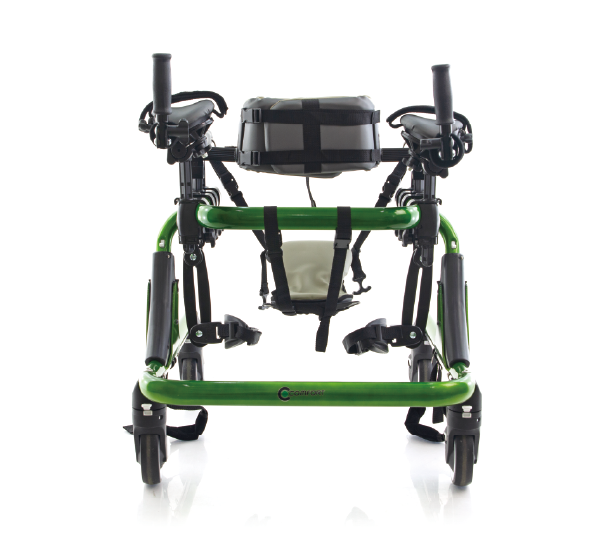

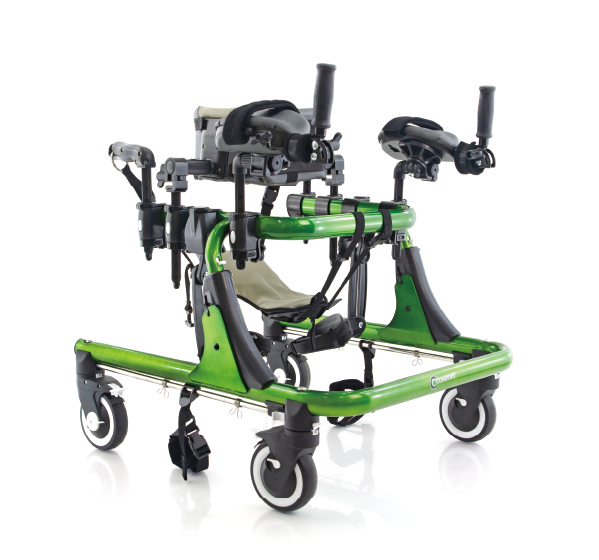

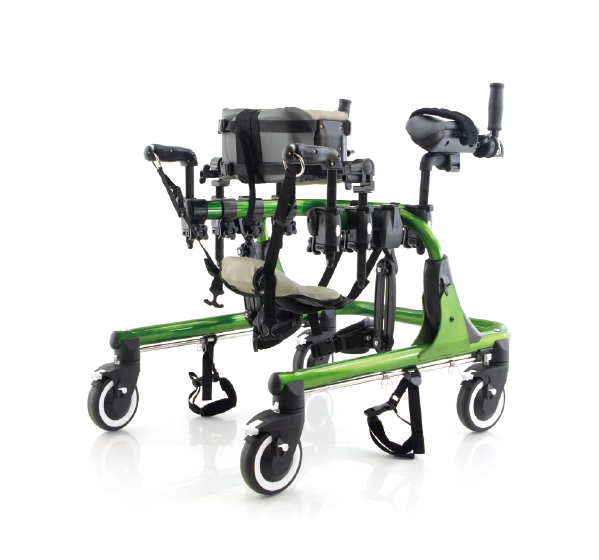

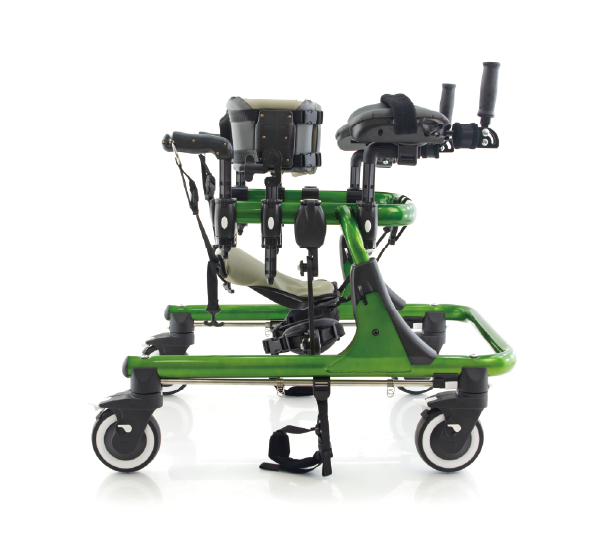

StrideRider Gait Trainer StrideRider

Product Name : StrideRider Gait Trainer

Multi-functional, modular supports-walkers

Designed to develop walking skills with cerebral palsy, as

well as patients with various disorders of the musculoskeletal

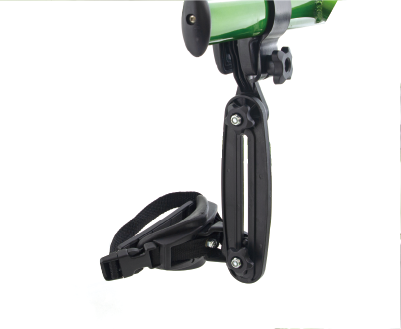

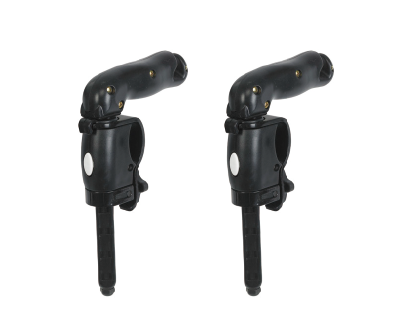

system. The supports-walkers are equipped with a complete

set of devices for fixing various parts of the body in the

correct position. All devices are easily attached and removed,

allowing the walkers to be assembled like a constructor,

according to the needs of a particular patient at different

stages of rehabilitation. All fixators are adjustable in several

parameters for the most accurate fitting of the walkers to the

anatomical features of the patient. The walkers are available

in three sizes and can be used both in rehabilitation centers

and at home.

Q'ty :

Inquiry

Overview

SIZE (± 5%)	S	M	L
Frame length	820 mm	820 mm	960 mm
Frame Width	580 mm	660 mm	710 mm
Top frame height	390-480 mm	540-660 mm	740-1000 mm

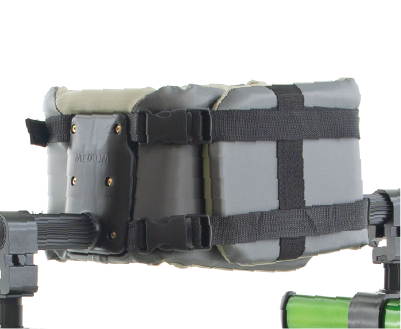

Chest brace height (overall)	480-700 mm	720-970 mm	940-1340 mm
User height from floor to elbow	490-700 mm	660-900 mm	840-1240 mm

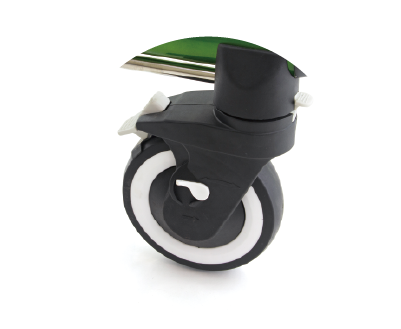

Wheel diameter	140 mm	140 mm	140 mm
Approximate user height	70 - 115 cm	100 - 140 cm	130 - 195 cm
Maximum load capacity	34 kg	68 kg	91 kg
Weight	14 kg	16.1 kg	18.3 kg
